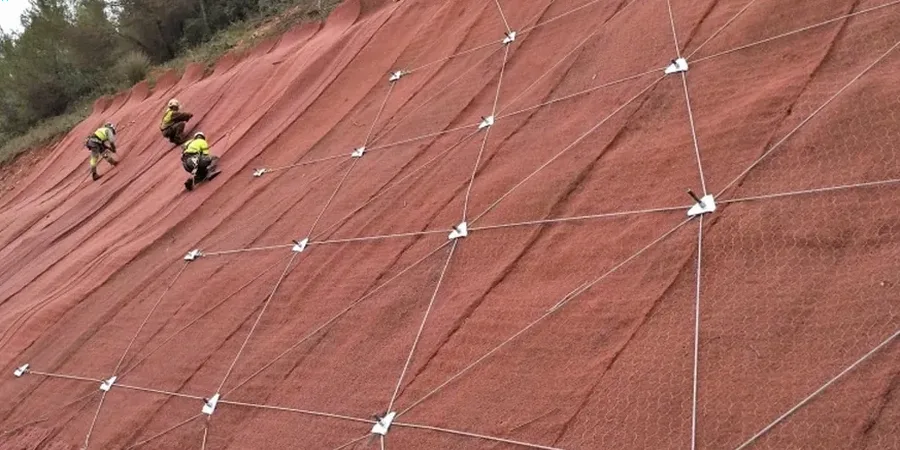

Slope Stability Analysis in Tauranga: The Geotechnical Reality Behind the Hills

If you compare a site on the ancient, weathered ignimbrite slopes of Welcome Bay with a subdivision carved into the softer Pliocene sediments behind Papamoa East, you are effectively working with two different engineering materials that just happen to share a city. Tauranga’s topography is shaped by the Kaimai Range to the west and the coastal Holocene dunes to the east, but the real challenge for slope stability analysis here sits in the middle: the Tauranga Basin. This tectonic depression is filled with loosely consolidated tephras, silts, and the locally infamous halloysite clays derived from rhyolitic ash. These materials lose shear strength fast when saturated, which explains why some cut slopes in the city have failed within the same year they were excavated. Our team has run stability models across most suburbs, and we can tell you that even a 10-metre cut in Omokoroa can behave completely differently from one in Matua, simply because of the depth to the water table and the degree of ash weathering. That specific local knowledge is what we bring to every test pit investigation, because logging the profile by hand often reveals more about the failure plane than any number of desktop models.

In Tauranga, the difference between a stable cut and a failure often comes down to a 20-centimetre-thick halloysite seam that was not picked up in the initial desktop study.

Methodology and scope

One thing that keeps reappearing in our work across the Western Bay of Plenty is the presence of extremely sensitive, post-eruption tephra beds that look deceptively stable when dry but turn slick the moment the winter rains arrive. In Tauranga, the average annual rainfall surpasses 1200 mm, and a large portion of that falls in intense, short-duration events that saturate the upper 2 to 3 metres faster than the underlying drainage can cope. That combination of rapid pore-pressure buildup and low-permeability ash layers has triggered countless local slips. For deep-seated failures along road corridors or large residential earthworks, we often pair the slope stability analysis with a seismic refraction survey to map the bedrock profile. This helps us distinguish between a shallow creep movement in the colluvium and a deeper rotational failure that could mobilise the entire hillside. The standard practice here follows the NZGS Guidelines for landslide risk management, but we also cross-reference with NZS 4404:2010 for subdivision earthworks and, when working near the coast, we apply Eurocode 7 (EN 1997-1:2004) principles adapted to local conditions. Our calculations incorporate effective stress parameters from consolidated-undrained triaxial tests on undisturbed Shelby tube samples, which we extract from the critical slip surface depth rather than from a generic borehole interval.

Local ground factors

The coastal dunes of Mount Maunganui have a completely different risk profile from the inland hills, but the common denominator across Tauranga is water. A dry summer like 2019-20 can mask serious instability that only reveals itself the following July, when a week of sustained rainfall pushes pore pressures past the critical threshold. We saw this pattern clearly after Cyclone Gabrielle remnants swept through in 2023, reactivating old landslide scars on slopes that had been dormant for a decade. The biggest mistake we see is an owner or contractor assuming that a slope will behave the same way it did during construction, without accounting for gradual weathering of the exposed face or the slow infilling of tension cracks. For coastal cliffs from Papamoa up to Bowentown, marine erosion at the toe removes passive support and can trigger a retrogressive failure that steps back into developed land faster than anyone expects. We document these mechanisms in the stability report not just as a compliance exercise, but to give the structural engineer and the earthworks contractor a clear picture of where the factor of safety is tight and where it can be improved through retaining walls or drainage.

Reference standards

NZGS Guidelines for Landslide Risk Management (current edition), NZS 4404:2010 Land Development and Subdivision Infrastructure, NZS 1170.5:2004 Structural Design Actions – Earthquake Actions, NZS 3404 Parts 1 & 2: Steel Structures (for retaining element design), EN 1997-1:2004 Eurocode 7 – Geotechnical Design (adapted principles)

Typical values

Parameter	Typical value
Analysis Method	Limit Equilibrium (LEM) with Spencer and Morgenstern-Price
Failure Models	Circular (Bishop), non-circular, block sliding, infinite slope
Seismic Coefficient (kh)	0.15 to 0.25 depending on site subsoil class per NZS 1170.5
Pore Pressure Model	Steady-state seepage calibrated with in-situ piezometer data
Shear Strength Input	Effective stress (c', phi') from CIU triaxial on undisturbed samples
Minimum FoS Target	1.5 static, 1.1 to 1.3 pseudo-static per NZGS guidance
Back-Analysis	Calibrated against existing slips in the Tauranga Basin where available

Quick answers

How much does a slope stability analysis cost for a typical residential section in Tauranga?

For a standard residential lot with a single cut or fill slope, the investigation and analysis typically range from NZ$2,150 to NZ$7,690, depending on whether we need a drill rig for deep samples or can access the slip surface with test pits. A site in Matua with good access and shallow tephra layers will be at the lower end; a larger property in Welcome Bay requiring piezometer installation and laboratory triaxial testing will push toward the upper end. We always provide a fixed-fee proposal after reviewing the site plan and any previous geotechnical reports.

What factor of safety do you target for a permanent cut slope in Tauranga clay?

We target a minimum static factor of safety of 1.5 for permanent cuts under long-term drained conditions, following the NZGS guidelines. For the pseudo-static case with the seismic coefficient taken from NZS 1170.5 for the Tauranga site subsoil class, we generally accept a factor of safety between 1.1 and 1.3, provided the deformation analysis shows acceptable displacement. Where structures are located within the zone of influence, we raise the target accordingly.

Do you need to drill boreholes for every slope stability analysis?

Not always. If the failure mode is likely to be a shallow translational slip within the upper tephra layer, we can often get sufficient data from carefully logged test pits and hand shear vane tests. But if we suspect a deep-seated rotational failure, or if the slope is higher than about 8 metres and the geology is complex, we will bring in a track-mounted rig to recover undisturbed samples from below the potential slip circle. The decision is made after a site walkover and review of the regional geological maps.

Can you model the effect of a retaining wall on the overall slope stability?

Yes, we routinely include retaining structures in the stability model to demonstrate how a wall modifies the failure surface. The wall adds a resisting force at the toe, but it also concentrates drainage, so we model the backfill drainage layer explicitly. For anchored walls, we extend the potential slip surface below the anchor bond zone to check for global instability that would bypass the wall entirely.
