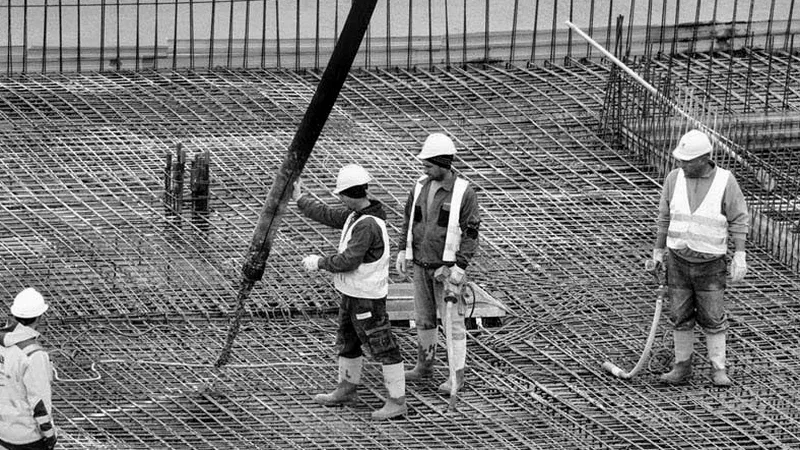

Raft and Mat Foundation Design in Tauranga’s Soft Coastal Soils

Beneath much of Tauranga, particularly across the coastal plain from Mount Maunganui to Papamoa, the subsurface tells a story of successive volcanic eruptions and marine transgressions. We find layers of loose pumiceous sands, soft estuarine clays, and buried peat deposits that barely register on a pocket penetrometer. Groundwater is often just a metre below the surface. These conditions make a conventional strip footing a gamble—one that rarely pays off. A properly designed raft or mat foundation changes the equation, spreading structural loads across a broad footprint to bypass localised soft spots. It works with the soil, not against it. In a city where the Kaimai Ranges meet the Bay of Plenty, understanding this geology is the first step in our design process, often informed by earlier site investigation data.

In Tauranga, a raft foundation is less about supporting the building and more about floating it over a profile that can change completely within twenty metres.

Our service areas

Methodology and scope

The contrast between two sides of the harbour is instructive. On the Mount side, we typically encounter loose, free-draining sands that are highly susceptible to liquefaction but relatively easy to work with once mitigated. Cross over to the Bethlehem or Matua peninsulas, and the profile shifts to thick sequences of compressible silts and clays where long-term settlement, rather than shaking, governs the design. A raft foundation in Tauranga isn't a generic slab; it's a tuned structural element. Depending on the subgrade, we incorporate deepened edge beams, internal stiffening ribs, or a cellular arrangement that bridges weaker pockets. Where the profile is particularly erratic, we pair the raft design with ground improvement techniques to homogenise the subgrade, creating a composite system that limits both total and differential movement to acceptable thresholds under NZS 3404 loading combinations.

Raft and Mat Foundation Design in Tauranga’s Soft Coastal Soils — Technical reference — Tauranga

Local ground factors

The expansion of Tauranga from a small port town into a major city accelerated in the 1990s, pushing development onto land that had been avoided for good reason. Estuarine margins were filled, peat swamps were capped, and subdivisions crept up the volcanic foothills. We now inherit the consequences of that historical push: uncontrolled fill of variable density, buried organic layers still decomposing, and a water table that rises and falls with the tide. Skimping on a raft foundation here isn't just a structural risk—it's a financial one. Differential settlement can rack a superstructure within months, and liquefaction-induced bearing failure during a moderate earthquake can render a building uninhabitable. The NZGS guidelines for liquefaction assessment are not optional in this region; they are the baseline from which every competent raft foundation design must begin.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering1.co

Reference standards

NZS 3604:2011 (Timber-framed buildings – limited applicability beyond scope), NZS 3404:1997 Parts 1 & 2 (Steel structures design), NZS 1170.5:2004 (Seismic actions), NZS 4402 (Methods of testing soils for civil engineering purposes), NZGS Module 1: Guideline for the identification, assessment and mitigation of liquefaction hazards

Typical values

Parameter	Typical value
Typical bearing stratum	Medium-dense pumiceous sand or stiff residual silt
Design groundwater level	0.5–1.5 m below ground surface
Seismic zone factor (Z)	0.21–0.26 (NZS 1170.5, Tauranga City)
Liquefaction susceptibility	High in coastal sand; moderate in alluvial silts
Maximum allowable settlement (total)	50 mm for residential; 25 mm for commercial
Modulus of subgrade reaction (ks)	10–30 MN/m³ (improved ground)
Slab thickness range	250–600 mm, with thickened ribs to 900 mm

Quick answers

What does a raft foundation design typically cost in Tauranga?

For a standard residential or light commercial building, the engineering design and associated geotechnical verification usually fall between NZ$1,700 and NZ$7,490. The spread depends on the complexity of the soil profile, the level of seismic analysis required, and whether supplementary in-situ testing is needed to refine the subgrade modulus.

When is a raft foundation preferable over piles in the Bay of Plenty?

A raft comes into its own when the competent bearing layer is deeper than about 3 metres or highly variable in depth. In Tauranga, where we often see interbedded sands and silts, driving piles can be unpredictable. The raft floats the entire structure over the variable profile, reducing the risk of differential movement that would require a heavily suspended ground floor slab anyway.

How do you account for Tauranga's high groundwater in the design?

We treat the water table as a permanent design condition, not a transient one. Buoyancy checks are run for the saturated case, and we specify a capillary break layer of clean, compacted gravel beneath the slab. Drainage around the perimeter is detailed to maintain the water level below the slab soffit, preventing hydrostatic uplift during heavy rainfall events that are common in the Bay of Plenty.

What is the biggest mistake you see with raft foundations in this region?

The most serious error we encounter is treating the raft as a rigid body without checking the relative stiffness between the slab and the ground. In Tauranga's soft soils, a thin slab can be too flexible, leading to cracking at points of concentrated load. We model the soil-structure interaction using the actual ks value and add stiffening ribs where the bending moments demand it—ignoring this step is where many under-designed rafts fail.
